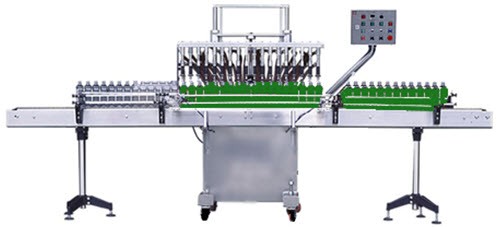

New 20 Head Automatic Pressure Liquid Filler, Model PF 5000 160332
Available from DJS Enterprises
New 20 Head Automatic Pressure Liquid Filler, Model PF 5000. This is filler works with plastic and glass containers. Construction Features: 304 Stainless Steel Heavy-Duty Stainless Steel welded C Frame, 20 Gallon Stainless Steel overflow tank, Stainless Steel cover for overflow tank, 20 hose 304 Stainless Steel feeding manifold, all contact parts are Stainless Steel, sanitary, Teflonhoses per your requirements, calibrated guide for fast height changeovers, machine mounted on 4 heavy duty casters. Leveling of machine by 1 inch 304 Stainless Steel leveling screws. Special seals and hoses can be ordered (for an additional cost) Control Panel Features: frequency control drive for pump speed, acceleration and deceleration, front panel filling time adjustment trough Omron Timer, front panel start and emergency STOP for easy access, front panel nozzle code for changing nozzle quantities, expandable to 20 nozzles to increase speed, operator footswitch start cycle control. Main components features: 96 gallon per minute, 1 Hp, 3 phase, 316 Stainless Steel centrifugal pump, hardened Stainless Steel calibrated shafts with linear bearings for nozzle rack movement smoothness and durability, 8” stroke air cylinder, 316L Stainless Steel sanitary check valve mounted on pump, and hand wheel and shaft mounted stoppers for height and stroke adjustment.
