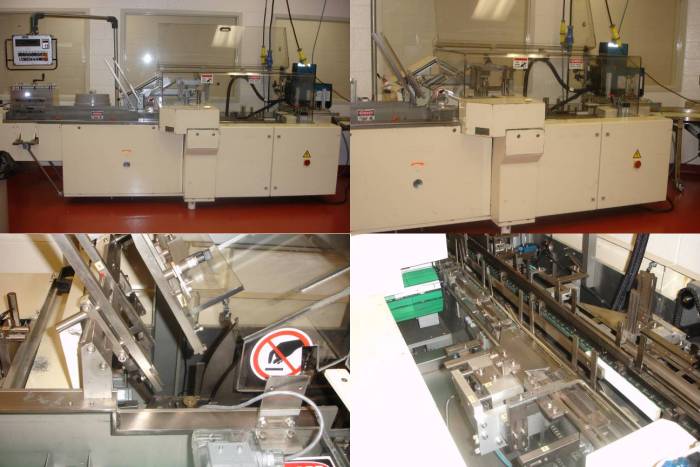

Brunner Horizontal Combination Reverse Tuck and Hot Glue Intermittent Motion Cartoner, Model CMI-11.

Product Details

1 Used Brunner Horizontal Combination Reverse Tuck and Hot Glue Intermittent Motion Cartoner, Model CMI-11. Serial #: 3019. Unit was manufactured in 1994 and set up with an 11” pitch for up to 50 cartons per minute. Folding Box Size Range: 20 to 230mm wide by 13 to 125mm deep by 55 to 250mm long. Electrics: 3/60/220 volts, 5 bar, 60 psi compressed air. Unit comes with the following features: Klockner PLC Controller, Leaflet Inserter for pre-folded leaflets, one lane blister infeed, counting and stacking, digital fault indication panel, 2 lane x 10 digit embosser, special product hold down device for flat objects, finished carton discharge conveyor, missing leaflet carton ejection system, Nordson Hot Melt System, Center adjustment for carton transport chain, Carton closing station for reverse tuck cartons, product infeed pusher with overload protection sensor, No product, No carton sensor, Safety covers with safety interlock and venting openings, digital cycle indicator, Emergency Stop Buttons. Overall dimensions: 151” long x 62” wide by 84” high. Unit sits on heavy duty castors and is painted in an epoxy paint. Was last used in a large pharmaceutical facility and is available for immediate delivery.
