Master Plant

Product Details

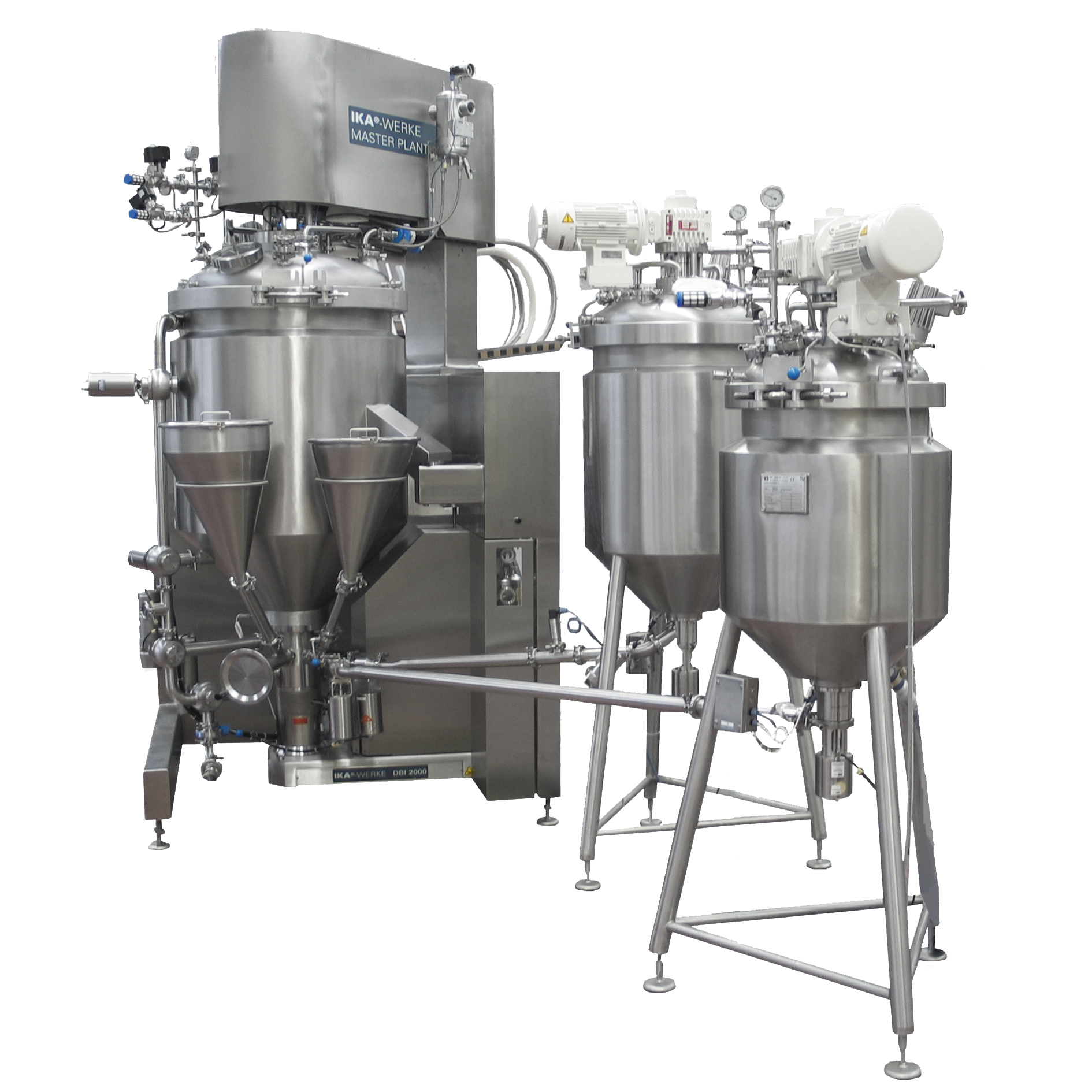

(Click to enlarge image) The IKA Master Plant homogenizing and emulsifying system is a universal mixing system developed for the production of emulsions and suspensions in the pharmaceuticals industry in particular, but also in the food, beverages, cosmetics and chemical industries. The plant is GMP-compliant and guarantees a high degree of precision, safety and reproducibility of the results. The Master Plant system enables the direct feed of solids and liquids, mixing and dispersing of the vessel contents, heating or cooling of the product and processing under vacuum or under pressure.

The required degree of homogenization and particle crushing is achieved by circulation of the mixture via a DBI dispersing unit integrated into the base of the vessel. The proven technology of this patented IKA DBI homogenizer involves a two-stage operation:
A specially designed pump rotor with high circulation performance provides turbulence in the vessel, gentle circulation and sufficient pressure and throughput for CIP cleaning.
An efficient generator (rotor-stator system) produces very high shear forces and thus dispersions with long-term stability and ultra-fine droplets. The design of the DBI creates a strong negative pressure in the product stream, which results in reliable feed of the components to the working chamber.
Depending on the process requirements, an integrated valve allows the product either to be pumped gently through the first stage only, or to be processed and dispersed in the two stages.
