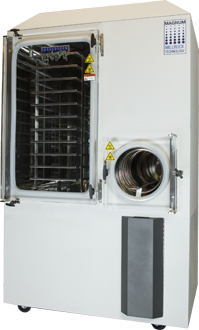

MAGNUM® Pilot Freeze Dryers
Available from Millrock Technology, Inc
Offering up to 20 sq ft of shelf area and a condensing rate of 30 liters, the Magnum Pilot Freeze Dryer stands out amongst the competition. This lyophilizer offers 30% more shelf area than most other units in its class. The Magnum Pilot Lyophilizer uses the most advanced PC/PLC controls, offering data collection and self-testing features. Advanced system options such as FreezeBooster® Controlled Nucleation, Auto-Dry™ Protocol Optimization, AccuFlux®, and LyoPAT® In-Process, Process Analytical Technology, are also available. The combination provides the ideal platform for simplified and optimized protocol development. While the Magnum is commonly used for R&D purposes in the lab, it is the perfect lyophilizer for small scale production.
Our easy-to-use software provides automatic freeze-drying, defrost, system and leak rate testing. Data can be printed either numerically or graphically. This same control system is used on industrial dryers, allowing scaling to production. An interactive maintenance screen simplifies component servicing. All systems are remotely accessible, with customer approval, for troubleshooting process issues.
10 shelf pull down from +20 to –40C in less than 40 minutes
Vacuum pull down to 100 mT in less than 20 minutes
Vacuum leak rate less than 30 mT per hour
Vacuum level 10 mT in clean dry system (-85)
