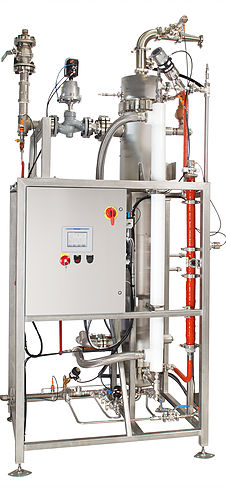

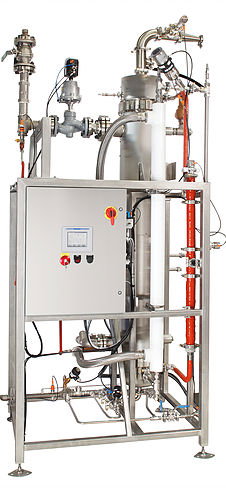

Steam-to-Steam Pure & Clean Steam Generators

Available from BMT USA, LLC

BMT steam-to-steam Pure and Clean Steam Generators utilize plant steam as the heating source to produce pure or clean steam. The tube and shell heat exchange is made from 316L stainless steel and can be built in single-tube-sheet or double-tube-sheet construction. The shell side of the evaporator is filled with plant steam providing heat to the evaporator tubes. The tubes are filled up to approximately 40% from the bottom with feed water. As the feed water is heated and evaporates, it travels up the tubes where additional heat removes any moisture. The steam exiting the top of the evaporator is clean, dry and saturated. The impurities remaining in the concentrated feed water are lead to drain via a timed blow down valve.When pure steam is required a steam separation device is included at the top of the evaporator. The steam separator is designed to direct the steam to direct the steam in a rigorous path where any impurities or remaining moisture is stripped off and lead to drain. When condensed the Pure Steam will meet Water-for-Injection standards.

Features:
Pyrogen separation device built-in for pure steam applications
Available in capacities from 50 lbs\hr up to 10,000 lbs\hr.
316L Stainless steel construction including feed water piping, vessel and pure steam piping
All sanitary construction with sanitary fittings for feed water, and pure or clean steam
Available feed water and pure\clean steam conductivity monitoring and recording
