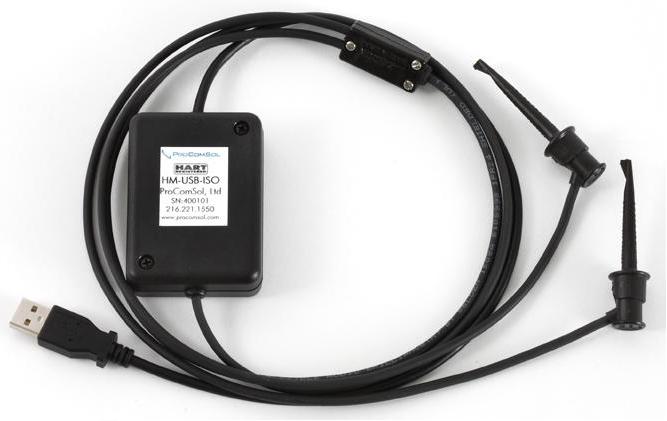

HM-USB-ISO

Available from ProComSol, Ltd

HART Foundation registered compliant HART Modem with a USB interface. Connects your PC to your HART instruments for configuration and monitoring. Electrically isolated for enhanced safety and performance

Features:
HART Foundation Registered, Registration Number L2-06-1000-070
CE Certified, CE Declaration
RoHS (lead free), RoHS Declaration
1500 Vdc Opto Isolation between HART and USB circuits
USB 1.1 and 2.0 compatible
Integral standard USB type A connector
Integral heavy duty HART Minigrabber connectors
Certified to meet HART Physical Layer Spec HCF_SPEC-54
Self powered, no external power supply or batteries needed
48” (1.2m) cable length
Easy to install Virtual Serial Port for any Windows application
Compact size 3.0” x 2.0” x 0.8” (70mm x 51mm x 20mm)
Rugged ABS plastic enclosure
Custom cable lengths available
Banana plug option available (HM-USB-ISO-BP)
HART Modem Test Program included
Cost effective
1 Year warranty
Guaranteed to work with Windows 7 through 10
Guaranteed to work with 32 and 64 bit Windows computers
