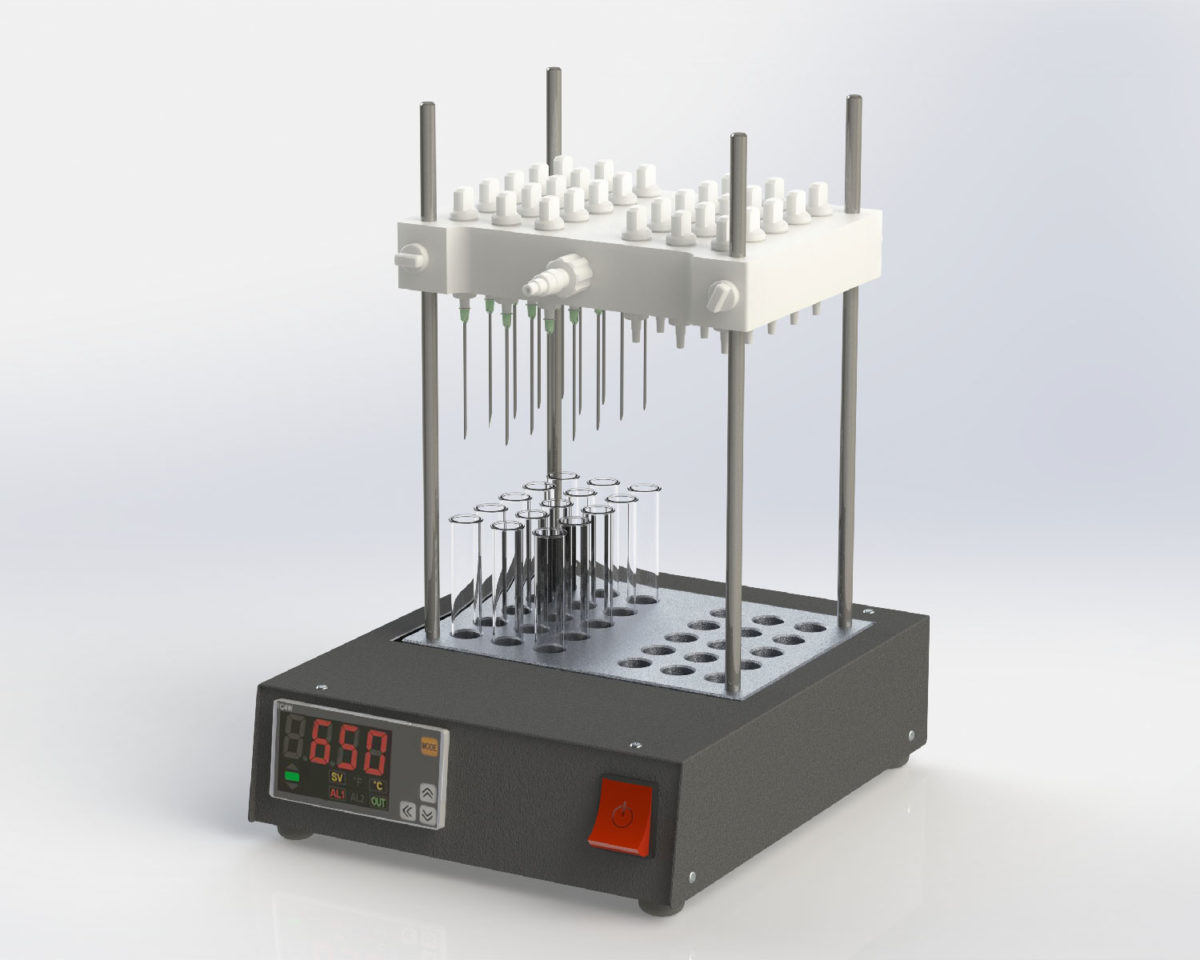

Nitrogen evaporators YKTG EvaPor ©

Product Details

EvaPor is a device for sample preparation for liquid chromatography, gas chromatography, mass spectrometry, as well as for a group of enzyme immunoassay methods.

Nitrogen or other inert gas is supplied to the distribution unit through the fitting attached to the distribution unit. The unit is equipped with individual nitrogen supply valves (according to the number of ports for the tubes). It helps to save inert gas by supplying it only to where it is needed.

The distribution unit is also equipped with a screw position regulator, bearing supports and a key, which allow adjusting the position of the distribution plate relatively to the surface of the thermo-distribution base (optional). The number of tubes required for the process is installed into the ports of the thermo-distribution base, then the distribution unit is lowered to the appropriate height, and nitrogen is fed at the applicable speed into the corresponding tubes. Temperature parameters required for heating the tubes are set by using the electronic temperature controller (optional).

EvaPor 30
Number of simultaneously evaporated samples: 30
Test tube socket diameter (basic equipment): 16 mm
Nitrogen connection via 6-10 mm barbed fitting
Operating temperature range: 40-99 °C
Power consumption: 400 W
Power supply voltage: 220 V
Lifting height of the nitrogen distribution unit: 240 mm
Overall dimensions of the thermostat: 240х290х80 mm
Overall dimensions of the complex: 240х290х370 mm
Weight: 7.35 kg
