Dry Block Thermostats YKTG EvaPor ©

Available from Y.K.T.G.

A range of devices for heating, thermostatting and evaporating samples.

Operating principle of the thermostat
The thermostat tube stand is made of an alloy with a high heat capacity and thermal conductivity, which ensures a stable temperature distribution and rapid heat transfer to the samples. Thermostat tube stands are produced on an automatic CNC complex, which allows modeling the shape and number of holes required for the task. The tube stand is installed into the tray of the thermostat heating element. The operation of the thermostat is controlled by an adaptive electronic unit, which allows additional tuning of the device under specific conditions, providing increased accuracy and convenience in operation.

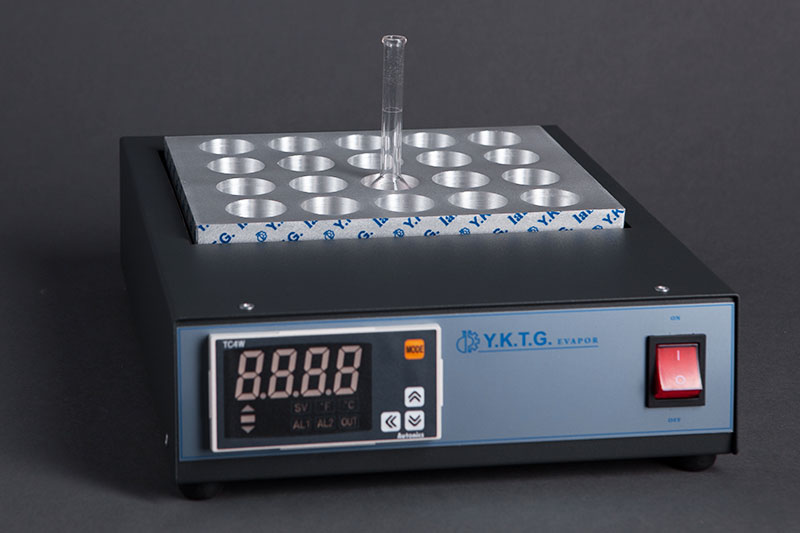

Thermostat EvaPor 30
Number of simultaneously thermostated samples: 30
Test tube socket diameter (basic equipment): 16 mm
Operating temperature range: 40-99 °C
Power consumption: 400 W
Power supply voltage: 220 V
Overall dimensions of the thermostat*: 240х290х80 mm
*The thermostat holder can be designed in any configuration

*The thermostat holder can be designed in any configuration

Thermostat EvaPor 80
Number of simultaneously thermostated samples: 80
Test tube socket diameter (basic equipment): 16 mm
Operating temperature range: 40-99 °C
Power consumption: 850 W
Power supply voltage: 220 V
Overall dimensions of the thermostat*: 430х370х370 mm
*The thermostat holder can be designed in any configuration
